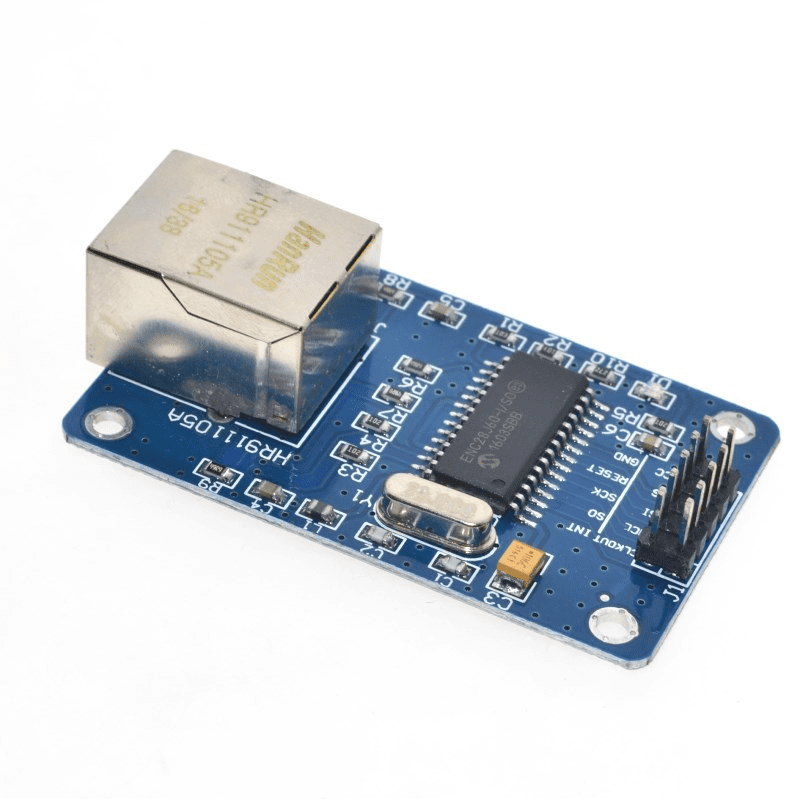

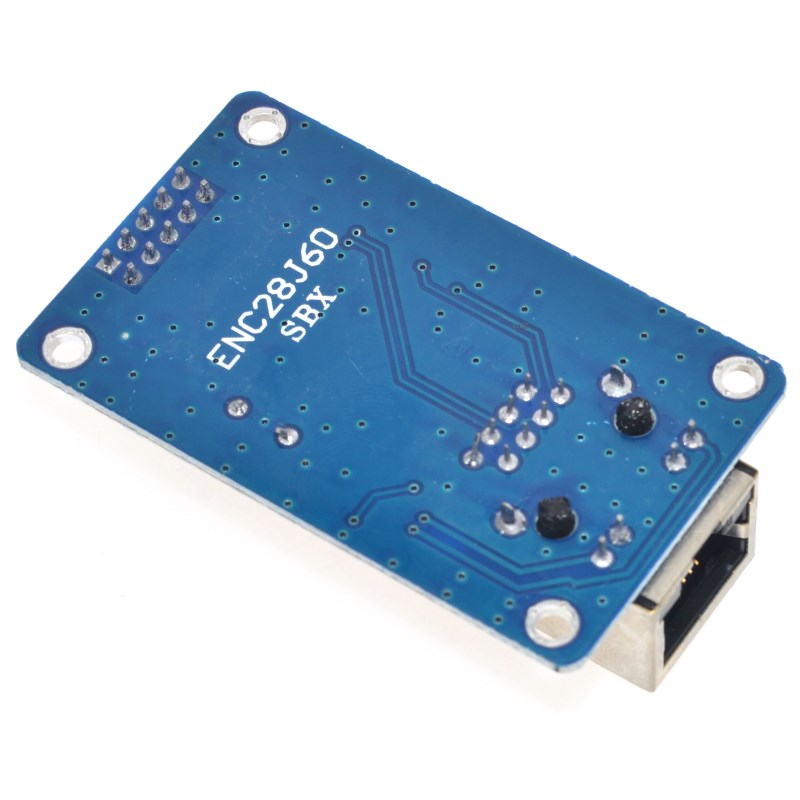

The **ENC28J60 Ethernet Module** is a compact, cost-effective network interface solution that features Microchip's ENC28J60 standalone Ethernet controller in a 12-pin SSOP package. This module provides an easy way to add Ethernet connectivity to embedded systems using the SPI interface, making it ideal for IoT applications, home automation, and industrial control systems. With its small form factor and low power consumption, the ENC28J60 is perfect for space-constrained projects requiring network connectivity.
✨ Key Features and Benefits
- Compact SSOP Package: 12-pin small outline package saves board space
- SPI Interface: Simple 4-wire SPI communication with host microcontroller
- Integrated MAC & PHY: Complete Ethernet controller in a single chip
- Low Power Consumption: Ideal for battery-powered applications
- Cost-Effective Solution: Affordable Ethernet connectivity for embedded systems
🔧 Material and Construction Details
| Component | Material | Description |
|---|---|---|
| Main IC | ENC28J60 Ethernet Controller | Standalone Ethernet controller with SPI interface |
| Ethernet Jack | RJ45 with Integrated Magnetics | Standard Ethernet connection with built-in signal conditioning |
| PCB | FR-4 Fiberglass | High-quality circuit board with compact design |
| Package Type | 12-pin SSOP | Small Shrink Outline Package for space-saving design |
📚 Use Cases and Applications
- Internet of Things (IoT) devices and sensor networks
- Home automation and smart appliance control
- Industrial monitoring and control systems
- Embedded web servers for device management
- Educational projects for learning about networking
🔍 Technical Specifications
| Specification | Details |
|---|---|
| Ethernet Controller | ENC28J60 |
| Package Type | 12-pin SSOP |
| Interface | SPI |
| Operating Voltage | 3.3V |
| Network Speed | 10Base-T (10Mbps) |
| Buffer Memory | 8KB transmit/receive buffer |
| Supported Protocols | IP, TCP, UDP, ICMP, ARP |
🔌 Connection Diagram
The ENC28J60 module connects to microcontrollers via SPI interface. The typical connections are as follows:
| ENC28J60 Pin | Arduino Pin | Function |
|---|---|---|
| VCC | 3.3V | Power Supply (3.3V only) |
| GND | GND | Ground |
| SO | 12 (MISO) | SPI Data Out |
| SI | 11 (MOSI) | SPI Data In |
| SCK | 13 (SCK) | SPI Clock |
| CS | 10 | Chip Select |
| INT | 2 or 3 | Interrupt (optional) |
⚙️ Setup and Configuration
To use the ENC28J60 Ethernet Module with Arduino, you'll need to install the UIPEthernet or EthernetENC library, as the standard Ethernet library doesn't support the ENC28J60 chip. These libraries provide similar functionality to the standard Ethernet library but are optimized for the ENC28J60. Basic setup involves initializing the Ethernet connection with a MAC address and configuring network settings.
⚠ Important Notes
The ENC28J60 operates at 3.3V only - do not connect to 5V logic without proper level shifting. It's less powerful than W5100/W5500 chips, with limitations on simultaneous connections and bandwidth (10Mbps vs 100Mbps). The module may require additional software processing as it lacks hardware TCP/IP stack. For best performance, use interrupt pin connection for efficient packet handling.
👍👎 Pros & Cons
| Pros | Cons |
|---|---|
| Extremely cost-effective Ethernet solution | Limited to 10Mbps speed (vs 100Mbps for others) |
| Very compact SSOP package saves space | Requires more MCU resources for TCP/IP processing |
| Low power consumption | 3.3V only operation (needs level shifting for 5V systems) |
| Simple SPI interface | Fewer simultaneous connections compared to W5500 |
| Wide community support and libraries | No hardware TCP/IP stack (software implementation) |
