The HW-290/GY-87 is a versatile 10-DOF (Degrees of Freedom) sensor module that integrates three powerful sensors: a 3-axis gyroscope and a 3-axis accelerometer (MPU6050), a 3-axis magnetometer (HMC5883L), and an air pressure sensor (BMP180). This all-in-one solution is ideal for complex projects requiring multiple types of environmental and motion data, such as robotics, drones, and navigation systems. The module is powered by a 3-5V supply, and its onboard LDO voltage regulator and built-in filters help reduce noise from other electronics. For added flexibility, the MPU6050's I²C address can be easily configured via a soldered jumper.
✨ Key Features and Benefits
- 10-DOF Integrated Sensing: Combines gyroscope, accelerometer, magnetometer, and air pressure sensors on a single board.
- Built-in Noise Reduction: Onboard LDO voltage regulator and filters ensure clean power and reduced electrical noise.
- Flexible I²C Address: Allows for easy configuration of the MPU6050 to avoid conflicts with other I²C devices.
- Wide Voltage Compatibility: Operates on a 3-5V supply, making it compatible with most microcontrollers.
🔧 Material and Construction Details
| Component | Details |
|---|---|
| Chipset | MPU6050, HMC5883L, BMP180 |
| Power Supply | 3-5V |
📚 Use Cases and Applications
- Drones and UAVs: Provides comprehensive data for flight stabilization, navigation, and altitude control.
- Robotics: Used for orientation, balance, and positioning in robotic platforms.
- Indoor Navigation: Combines data for dead reckoning and tracking in environments without GPS.
- Weather Stations: Can be used to measure barometric pressure and altitude.
🔍 Technical Specifications
| Specification | Details |
|---|---|
| Model Type | 10-DOF Sensor Module |
| Power Supply | 3-5V |
| Components | Gyroscope, Accelerometer, Magnetometer, Air Pressure Sensor |
| Number of DOFs | 10 |
🧼 Care Information
Handle the module with care to avoid physical shocks and protect it from dust and moisture. Avoid placing the board near strong magnetic or electromagnetic fields, which can interfere with the sensor readings.
⚠️ Safety Information
Ensure the power supply voltage is within the specified 3V to 5V range. Always double-check your wiring and connections to prevent short circuits and potential damage to the module or your host board.
👍👎 Pros & Cons
| Pros | Cons |
|---|---|
| Combines multiple essential sensors into one module, simplifying wiring and design. | Requires complex code and careful calibration to fuse data from all sensors accurately. |
| The onboard regulator and filters provide a stable and clean power supply. | The close proximity of sensors on a single board can lead to slight cross-interference. |
| Cost-effective solution compared to purchasing individual sensors. | - |

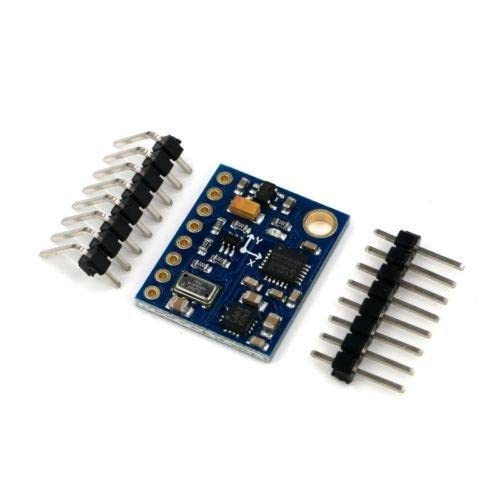

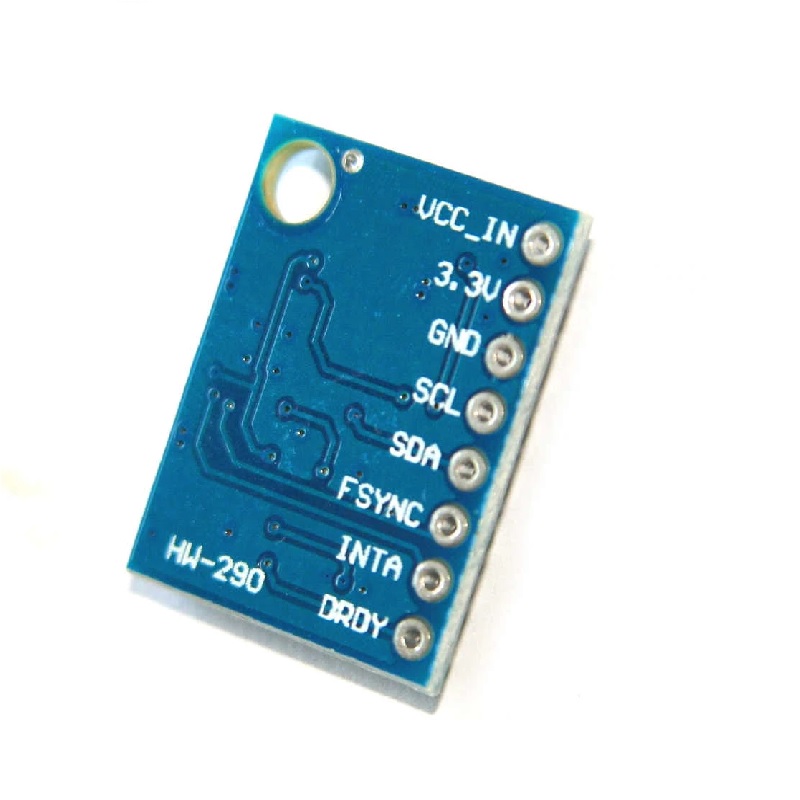

🅿️ Product Images:
