The Pro-Range Wind Speed Sensor SN-3000-FSJT-I20 is a professional-grade anemometer designed for accurate and reliable wind speed measurement in a wide range of outdoor and industrial environments. It features a rugged polycarbonate build and a standard 4-20mA current loop output, which is highly resistant to electrical noise and can transmit data reliably over long distances. This makes it an ideal choice for weather monitoring, wind energy, and automation systems.
✨ Key Features and Benefits
- Professional-grade accuracy and durability
- Standard 4-20mA current loop output for industrial applications
- Excellent resistance to electromagnetic interference (EMI)
- Durable polycarbonate cups for long-term weather resistance
- Low power consumption for continuous, long-term operation
- Wide operating temperature range
- Easy to integrate into industrial control systems (PLCs, data loggers)
🔧 Material and Construction Details
| Component | Material | Description |
|---|---|---|
| Housing & Cups | Polycarbonate (PC) | Lightweight, high-impact, and UV-stabilized material |
| Internal Bearings | Precision Bearings | Ensures smooth and low-friction rotation |
| Sensing Element | Hall Effect Sensor | Measures rotation speed for high-precision wind speed calculation |
| Cable | Weatherproof Cable | Designed to withstand outdoor conditions, including UV and moisture |
📚 Use Cases and Applications
- Industrial weather monitoring systems
- Wind energy and wind turbine control
- HVAC and building automation
- Agricultural weather monitoring
- Port and marine safety systems
- Environmental data logging
- Research and meteorological studies
🔍 Technical Specifications
| Specification | Details |
|---|---|
| Measurement Range | 0 to 30 m/s (approx. 0 to 108 km/h) |
| Output Signal | 4-20mA current loop |
| Power Supply | 12V to 24V DC |
| Accuracy | ± (0.5 + 0.05v) m/s, where v is the measured speed |
| Operating Temperature | -30°C to +70°C |
| Startup Wind Speed | < 0.5 m/s |
🔌 Connection Diagram
| Pin Name | Function | Wiring Color |
|---|---|---|
| VCC | Power (+) | Red |
| GND | Power (-) | Black |
| OUT | Current Output | Green |
🧼 Calibration & Maintenance
This sensor is factory-calibrated to produce a linear 4-20mA output corresponding to the wind speed range. No user calibration is typically required. For best performance, mount the sensor on a stable pole, free of obstructions. Regular maintenance includes visual inspections to ensure the cups are clean and spinning freely. The robust polycarbonate material and sealed bearings minimize the need for regular upkeep, making it suitable for remote installations.
⚠ Safety Information
Ensure the sensor is installed securely to prevent it from becoming a projectile in high winds. Always disconnect the power before performing any wiring or maintenance. The sensor is not designed to withstand direct lightning strikes, so a proper lightning protection system should be used for high-mast installations. Handle with care to avoid physical damage to the cups and internal components.
👍👎 Pros & Cons
| Pros | Cons |
|---|---|
| Industrial-grade reliability and robustness | Higher cost than hobbyist-grade anemometers |
| 4-20mA output is ideal for long-distance, noise-free transmission | Requires a current receiver or ADC with current-to-voltage converter |
| All-weather and corrosion-resistant construction | Does not measure wind direction |
| High-precision and wide measurement range | May be overkill for simple, non-critical applications |

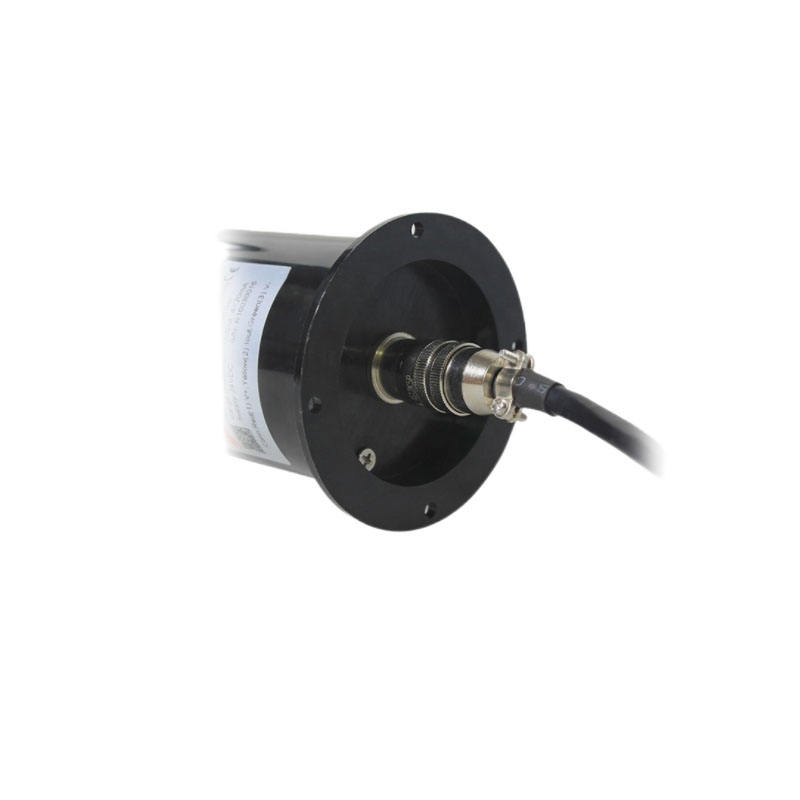

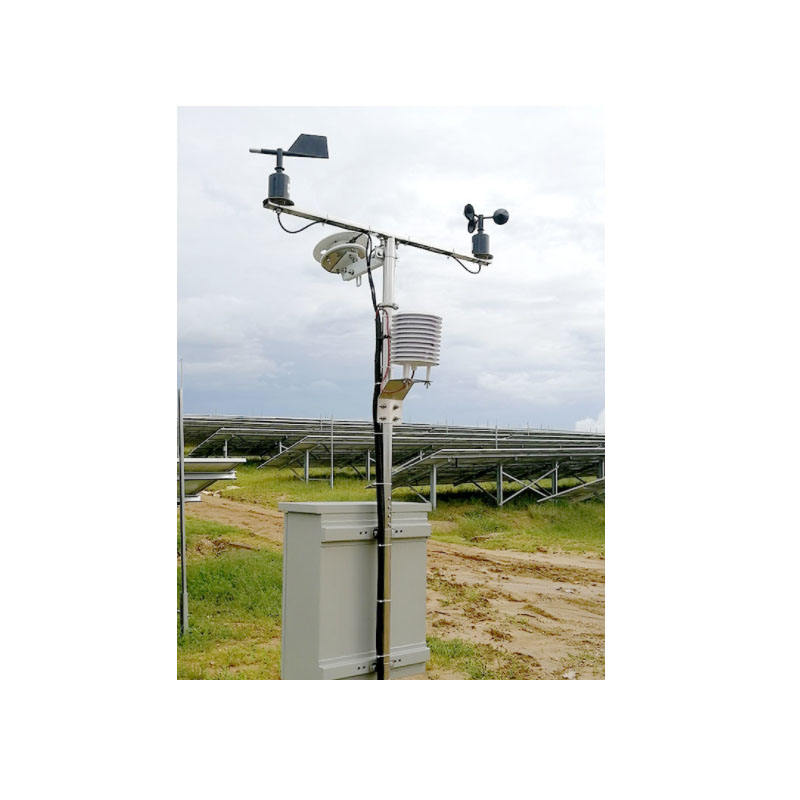

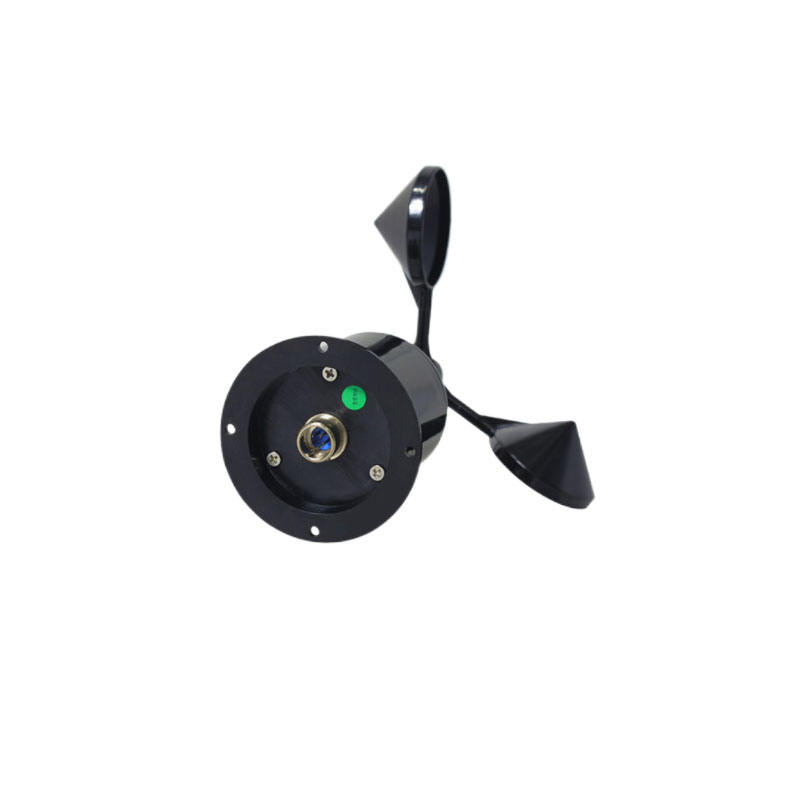

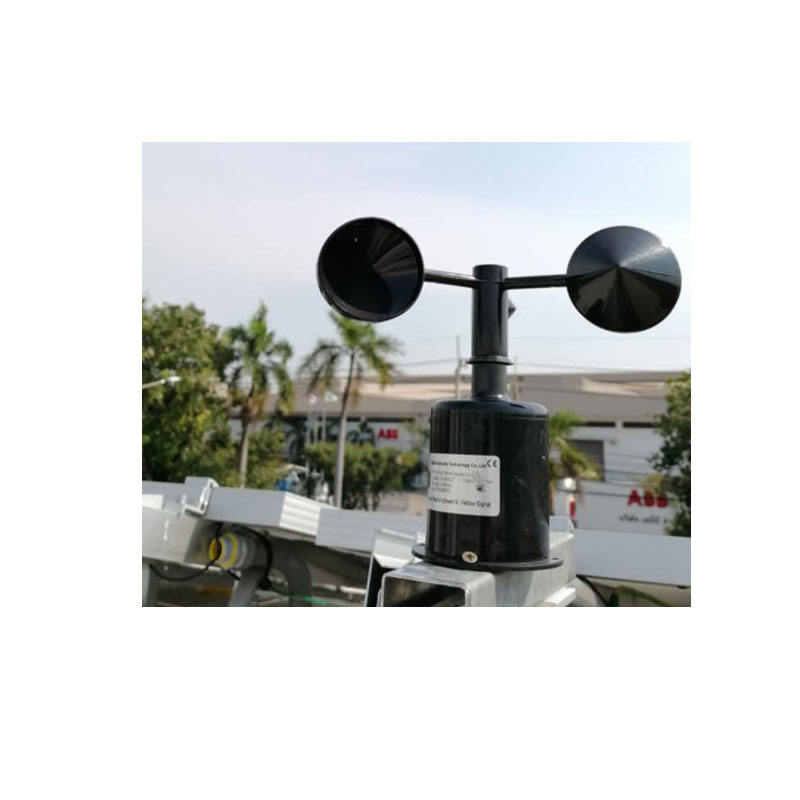

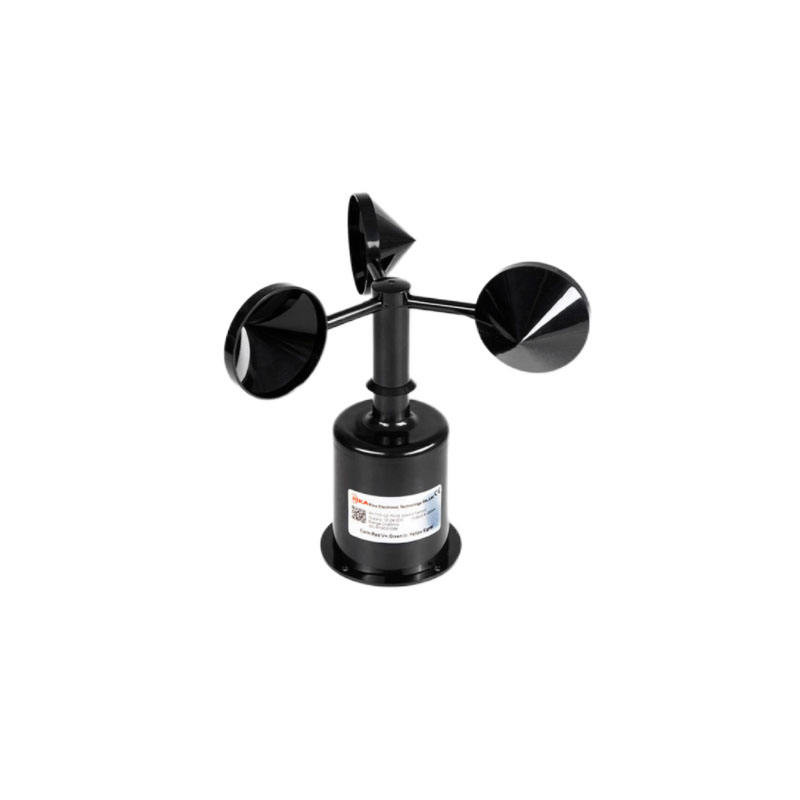

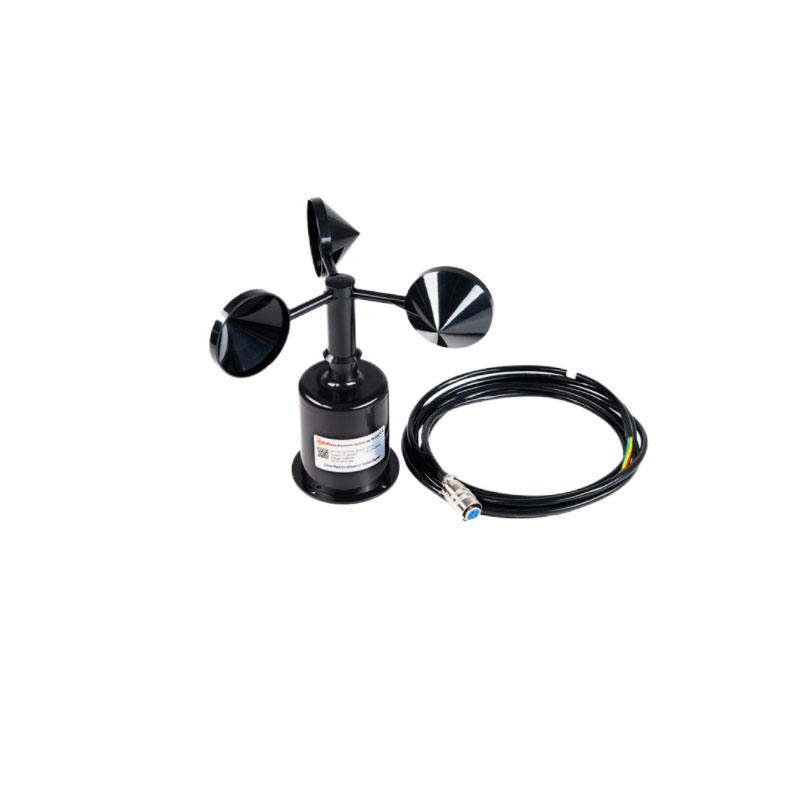

🅿 Product Images:
