The Senba SB612A-02-001-L is a high-sensitivity PIR (Passive Infrared) motion sensor module, compliant with RoHS environmental standards. It is designed for energy-efficient motion detection in lighting, security, and automation systems. With compact form factor and low power consumption, it easily integrates into embedded and commercial applications requiring reliable human presence detection.
✨ Key Features and Benefits
- High sensitivity to infrared motion
- Wide detection angle and range
- RoHS-compliant environmental standard
- Low current consumption for battery applications
- Compact and easily integrable design
- Automatic motion trigger output
- Stable performance in varying temperatures
- Ideal for lighting and alarm systems
- Reliable in indoor motion detection tasks
🔧 Material and Construction Details
| Component | Material | Description |
|---|---|---|
| Sensor Body | Epoxy Resin | Protective enclosure with sensitivity stability |
| Sensor Lens | Fresnel Plastic | Optimized field focusing for PIR |
| PCB | FR4 | Standard high-density circuit board |
| Output Leads | Tinned Copper | Stable signal transmission and mounting |
📚 Use Cases and Applications
- Indoor lighting automation
- Smart home occupancy sensors
- Motion-triggered alarms and sirens
- Ceiling or wall-mounted motion detectors
- Automatic power-saving systems
🔍 Technical Specifications
| Specification | Details |
|---|---|
| Sensor Type | Passive Infrared (PIR) |
| Operating Voltage | 2.2V – 3.7V DC |
| Detection Distance | Up to 12 meters |
| Detection Angle | 120° horizontal |
| Output | Digital High (3.3V) |
| Current Consumption | Under 15 µA |
| Operating Temperature | -20°C to +70°C |
| Compliance | RoHS, CE |
🧼 Care Information
Avoid placing near heat sources or reflective surfaces. Clean lens gently with soft dry cloth. Store modules in anti-static packaging when not in use.
⚠️ Safety Information
Use only within rated voltage range. Avoid ESD during handling. Do not expose to water, extreme heat, or mechanical stress.
👍👎 Pros & Cons
| Pros | Cons |
|---|---|
| RoHS and CE certified | Not designed for outdoor use |
| Very low power draw | Line-of-sight required for best performance |
| Compact and flexible layout | Requires lens alignment for accurate detection |

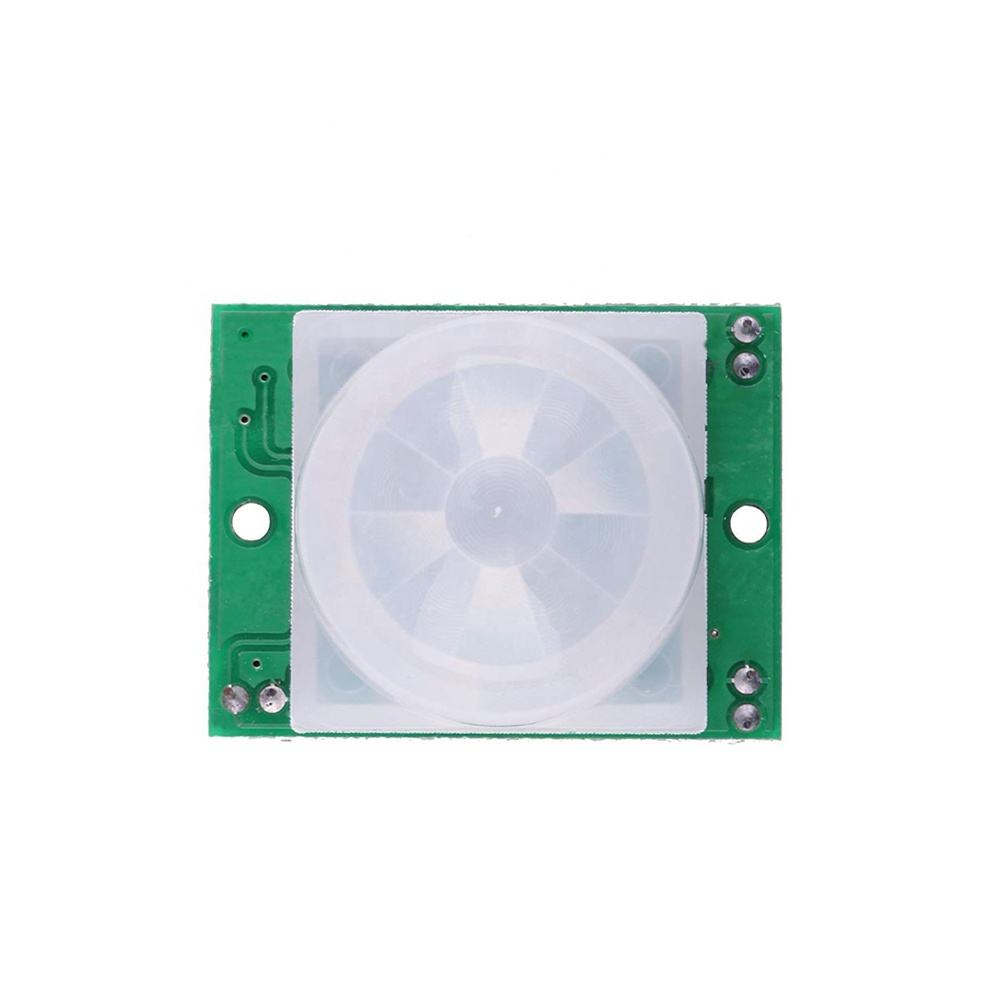

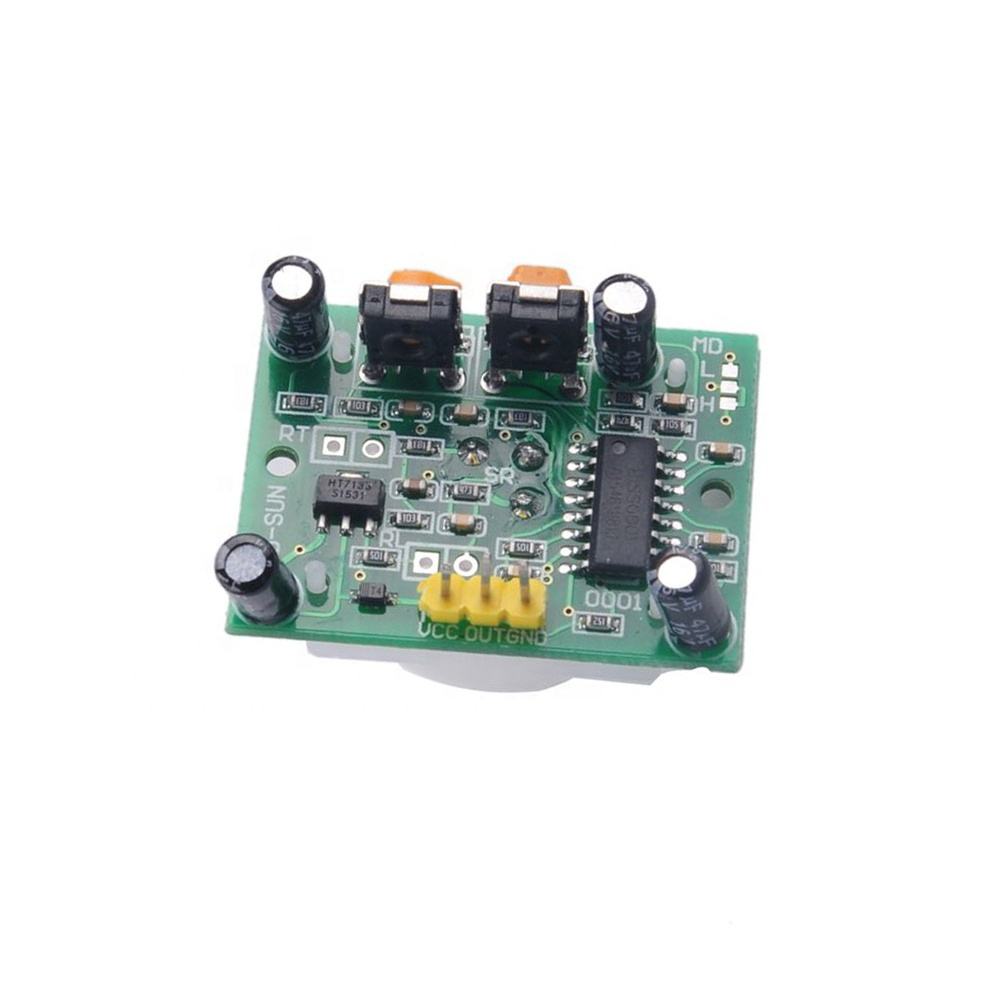

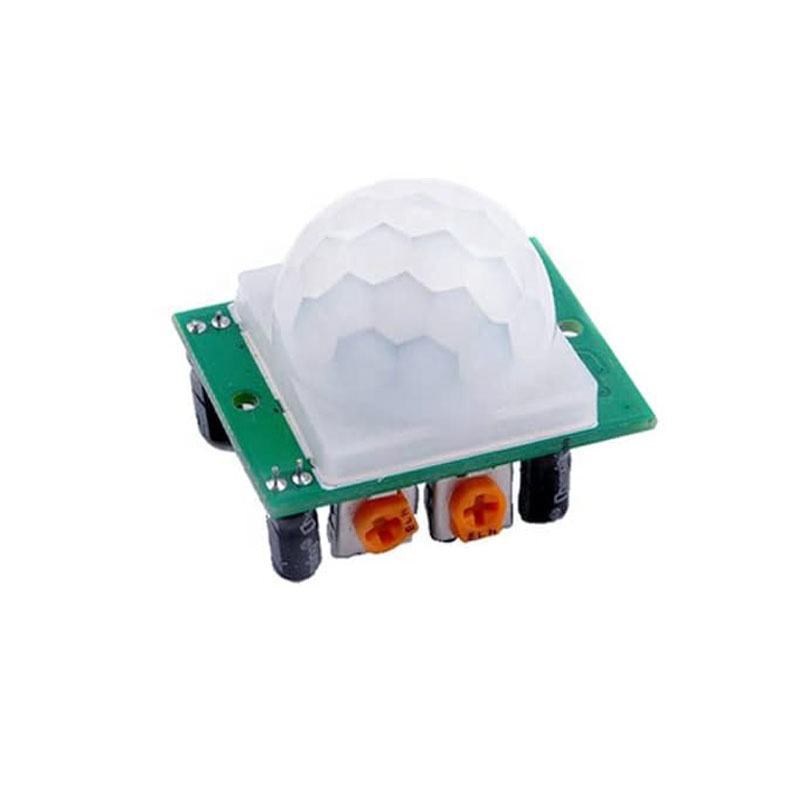

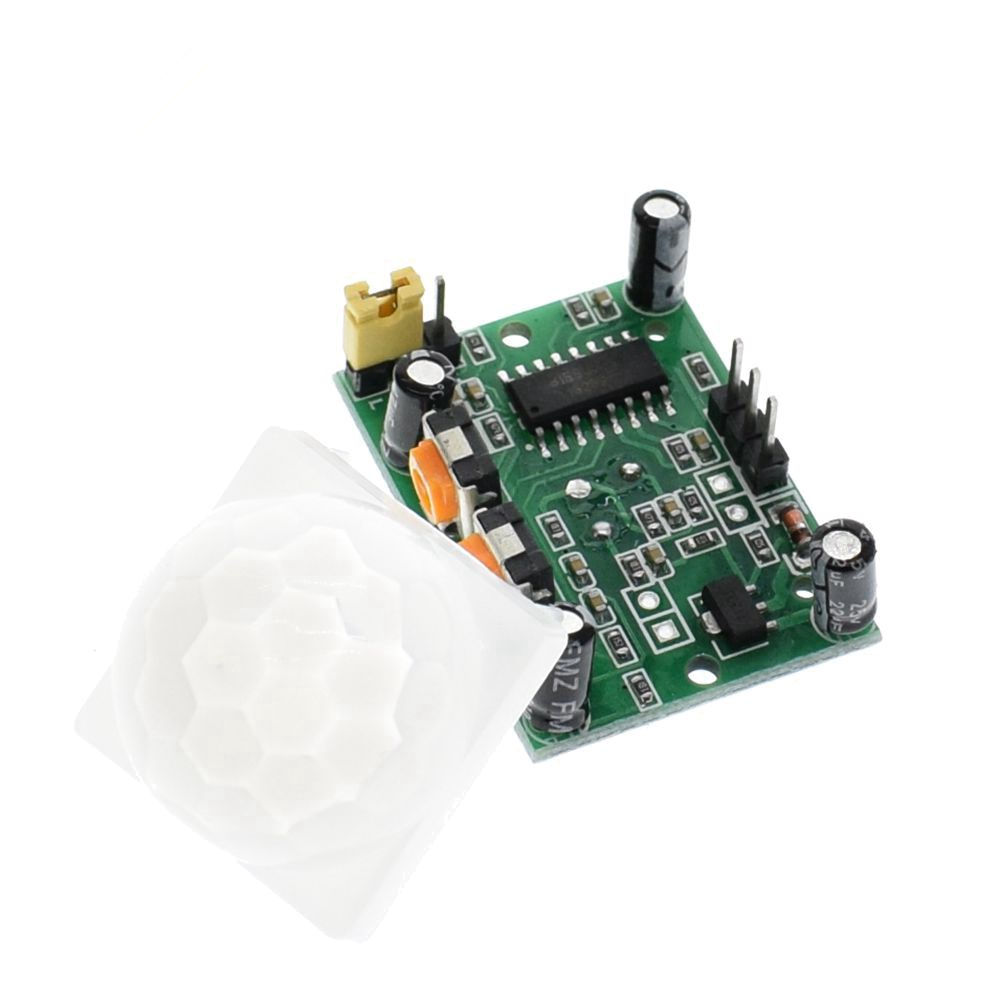

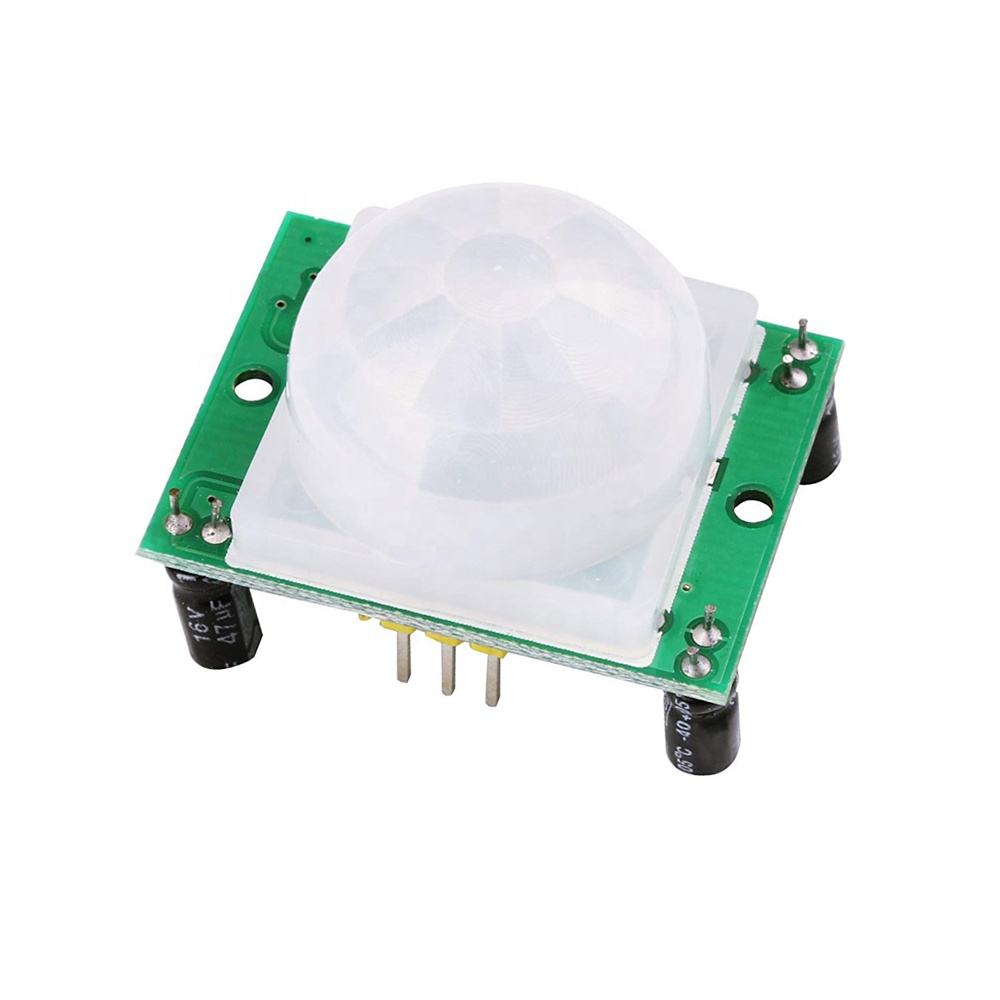

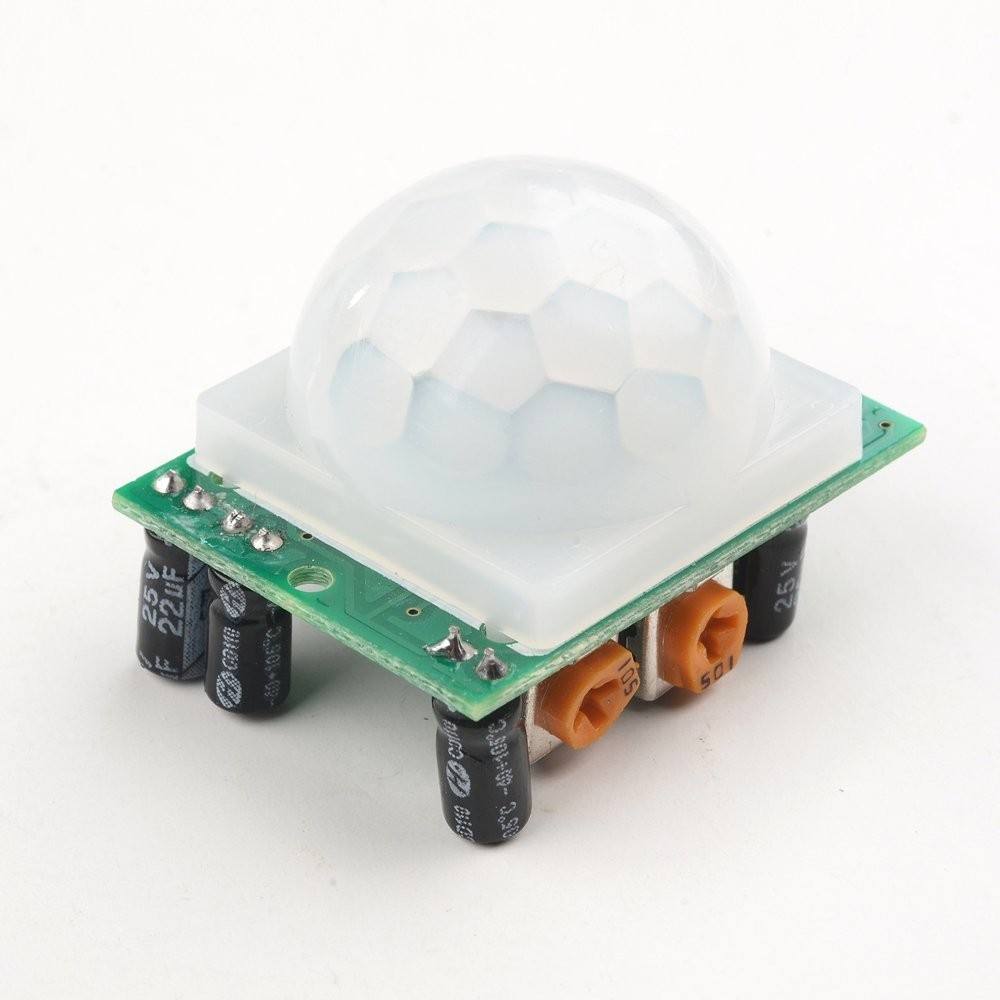

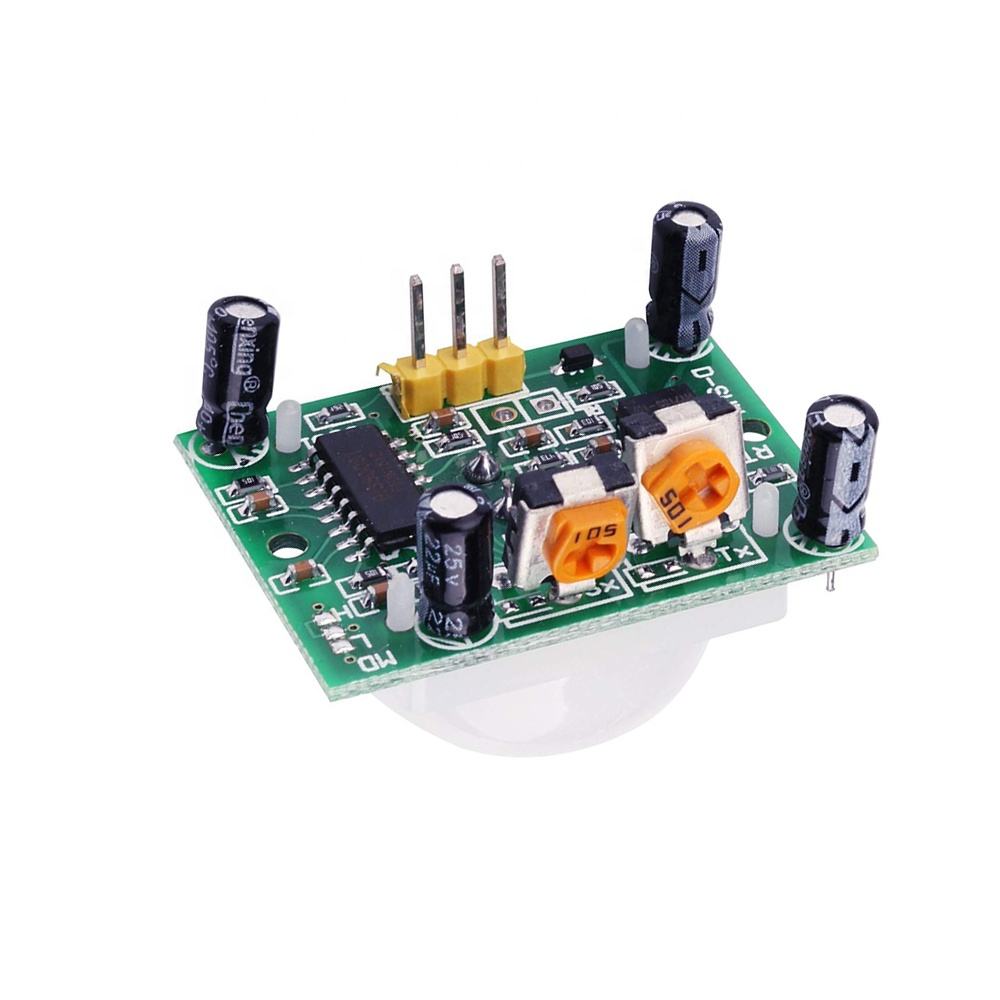

🅿️ Product Images:
