The Moonlex Smart Motion Sensor Module is a high-voltage motion detection unit designed for smart home automation and lighting systems. Operating across a wide input range of 90–260V AC, it enables automatic switching of lights or appliances based on motion detection. With a compact design and easy wiring, it offers reliable performance, energy efficiency, and hassle-free installation for modern smart environments.
✨ Key Features and Benefits
- Wide input voltage: 90V to 260V AC

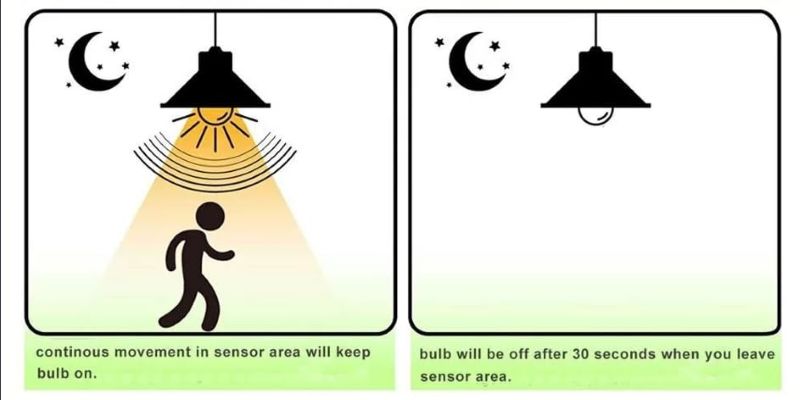

- Automatically turns on lights or appliances
- Highly sensitive motion detection
- Energy saving and cost-effective
- Works well in dark or light environments
- Compact and integrated design
- Ideal for ceiling or wall mounting
- Long service life and low maintenance

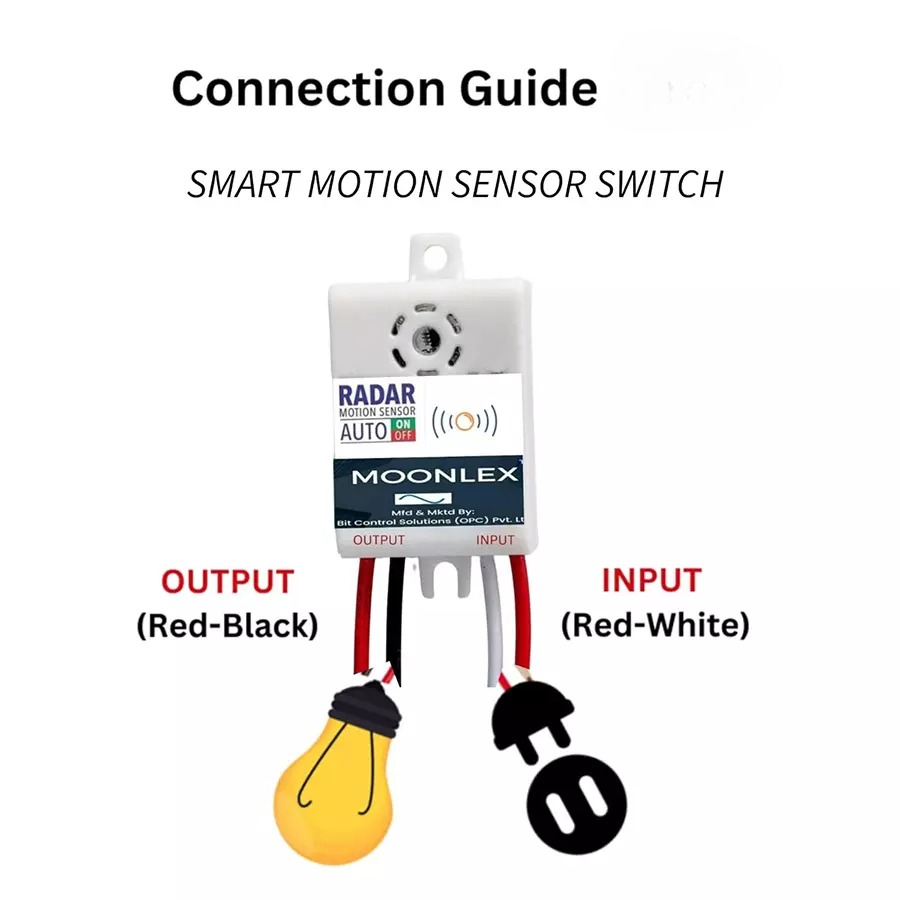

- Quick and easy wiring
🔧 Material and Construction Details
| Component | Material | Description |
|---|---|---|
| Outer Shell | ABS Plastic | Durable flame-retardant body |
| Sensor Lens | Fresnel Dome | Focuses infrared signals |
| PCB Board | FR4 | High-voltage tolerant circuitry |
| Terminal Blocks | Copper Alloy | Stable electrical connections |
📚 Use Cases and Applications
- Automatic hallway or staircase lighting
- Smart bathrooms and kitchens
- Retail store aisle lighting
- Home or office automation
- Energy-saving building management systems
🔍 Technical Specifications
| Specification | Details |
|---|---|
| Input Voltage | 90–260V AC |
| Load Power | Up to 200W |
| Detection Angle | 110° |
| Detection Range | 3 to 6 meters |
| Delay Time | Adjustable (10s–7min) |
| Light Sensor | Yes (day/night auto) |
| Installation Height | 2.2 – 4 meters |
| Dimensions | Approx. 50 × 50 × 25 mm |
🧼 Care Information
Ensure proper insulation and tight wire connections. Avoid exposure to moisture or corrosive gases. Clean the lens with a dry soft cloth periodically for optimal performance.
⚠️ Safety Information
Always disconnect power before installation. Ensure wiring complies with local electrical codes. Not recommended for outdoor use without protection.
👍👎 Pros & Cons
| Pros | Cons |
|---|---|
| Works with high-voltage AC supply | Not suitable for outdoor exposure without housing |
| Easy installation and wiring | Limited customization for delay time |
| Ideal for smart lighting automation | Requires careful handling of AC wiring |

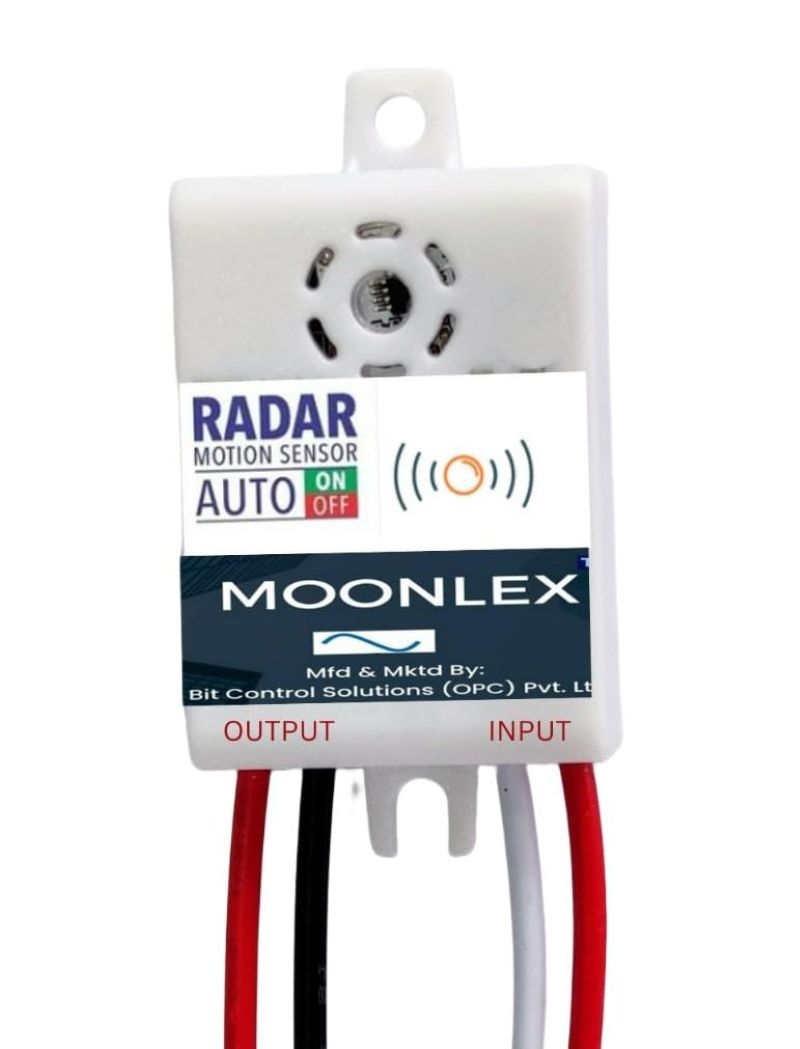

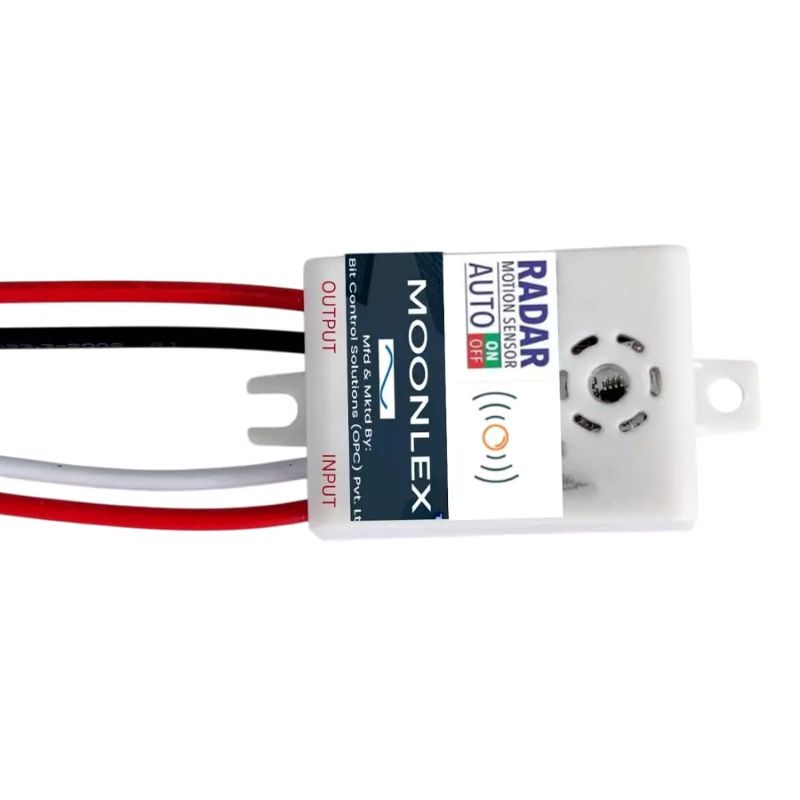

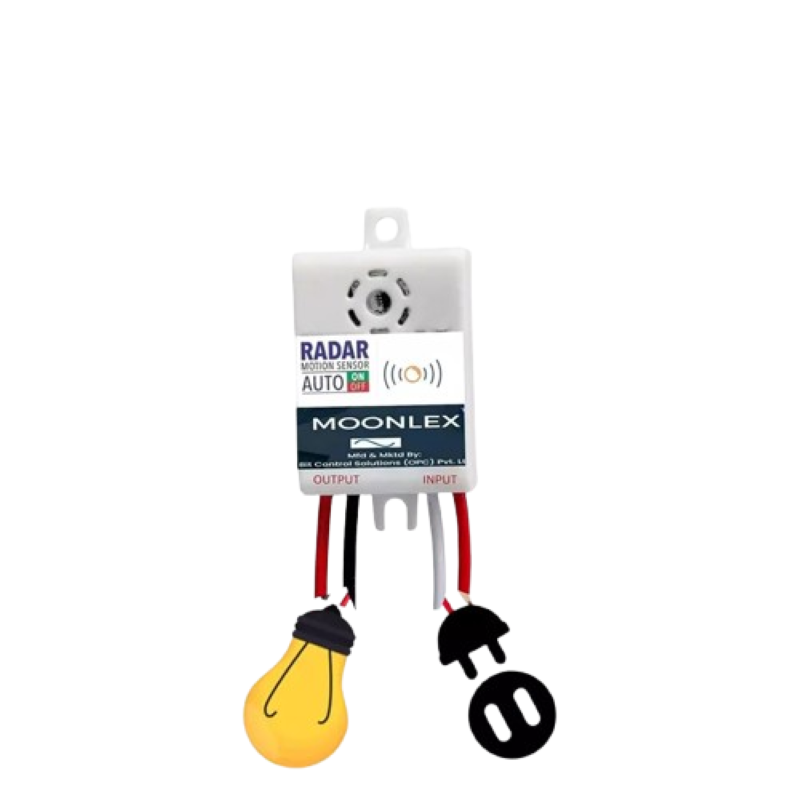

🅿️ Product Images:
