The VK-162 USB GPS Receiver Module features a USB 2.0 FS (Full Speed, 12 Mb/s) Interface and Microsoft® certified drivers for Windows operating systems (XP, Vista, 7, 8, 10). It supports NMEA ASCII protocols, version 2.3 (compatible with 3.0). Powered by the u-blox 7 GNSS engine, it provides high sensitivity and fast acquisition times across GPS, GLONASS, QZSS, and SBAS (WAAS, EGNOS, MSAS)
Enjoy precise and fast GPS navigation with this powerful receiver module, designed for a wide range of applications!
✨ Key Features and Benefits
- Built-in U-blox Low Power Consumption GPS Chipset
- 56 Channels for Fast Acquisition and Reacquisition
- Superior Sensitivity up to -162dBm
- Built-in WAAS/EGNOS/MSAS Support
- Low Power Consumption
- Support for NMEA 0183 v2.3 (compatible with 3.0)
- Waterproof Design (IPX6)
- Support for Windows XP, Vista, 7, 8, 10
🔧 Material and Construction Details
| Component | Material | Description |
|---|---|---|
| Body | Plastic | Durable casing with lightweight design |
| Antenna | Embedded | High sensitivity for optimal GPS performance |
📚 Use Cases and Applications
This GPS receiver module is ideal for:
- Automotive and Marine Navigation
- Fleet Management
- AVL and Location-based Services
- Notebook Navigation
- Distance Measurement
- Sports and Recreation
🔍 Technical Specifications
| Category | Specification |
|---|---|
| GPS Chipset | U-blox 7 Engine |
| Frequency | GPS/QZSS L1 C/A, GLONASS L1 FDMA |
| SBAS Support | WAAS, EGNOS, MSAS |
| Channels | 56 |
| Sensitivity | -162 dBm (GPS), -158 dBm (GLONASS) |
| Position Accuracy | 2.5m Horizontal (Autonomous), 2m SBAS |
| Velocity Accuracy | 0.1 m/s |
| Time Pulse Accuracy | 30 ns (GPS), 50 ns (GLONASS) |
| Cold Start Time | 29 seconds |
| Hot Start Time | 1 second |
| Warm Start Time | 5 seconds |
| GNSS Protocol | NMEA 0183 v2.3 (Compatible with v3.0) |
| USB Output | USB Interface |
| Humidity | Up to 95% non-condensing |
| Power Consumption | 25mA (typical) |
| Waterproof Rating | IPX6 |
Amplifier Specifications
| Specification | Details |
|---|---|
| Amplifier Gain | 27 dB Typical |
| Filtering | -25 dB (+100 MHz) |
| Output VSWR | 2.0 Max |
| Voltage | 3V – 5V DC |
| Current Consumption | 15mA max @ 5VDC |
🧼 Care Information
To maintain optimal performance, keep the GPS module clean and store it in a dry environment. Avoid exposure to extreme temperatures and moisture.
⚠️ Safety Information
Handle the GPS receiver with care to avoid damage. Ensure proper grounding when connecting to devices to prevent electrical issues.
👍👎 Pros & Cons
| Pros | Cons |
|---|---|
| Compact and portable design | Requires USB connection to operate |
| High sensitivity antenna | Limited range compared to some standalone GPS units |
| Easy integration with various systems | May require additional drivers for certain OS |

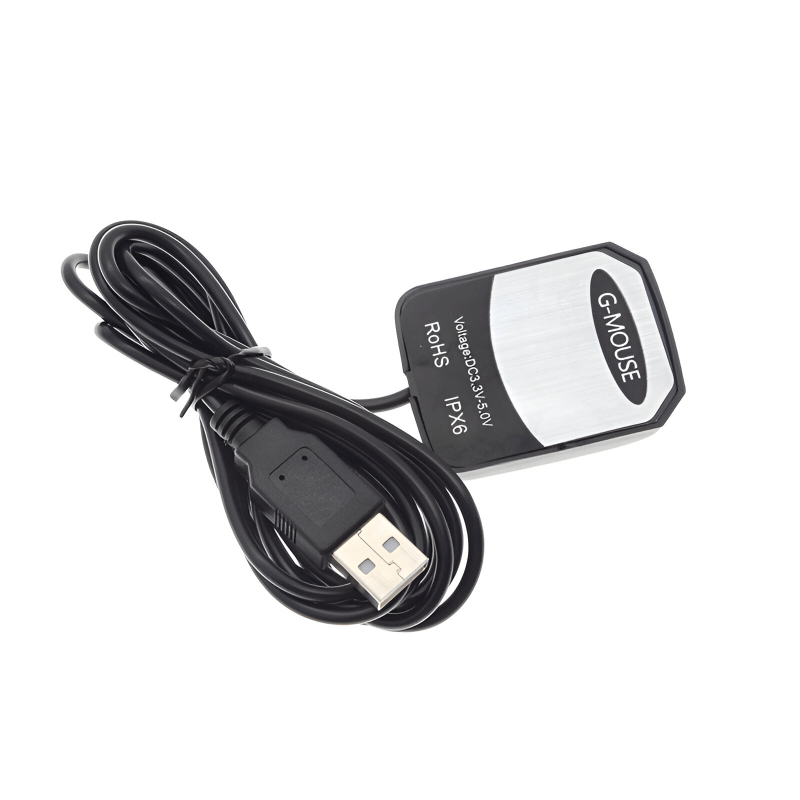

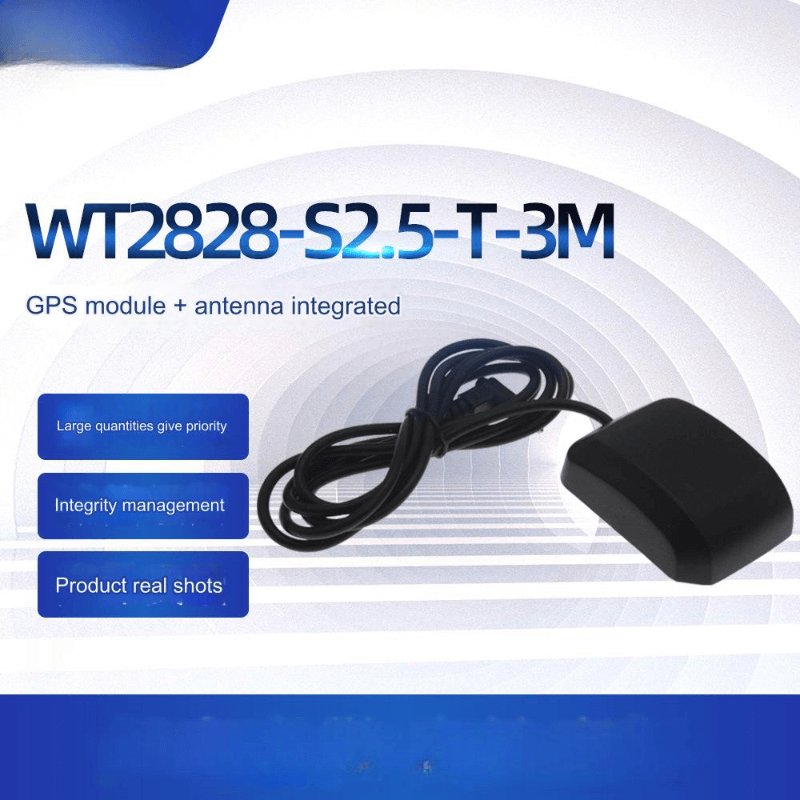

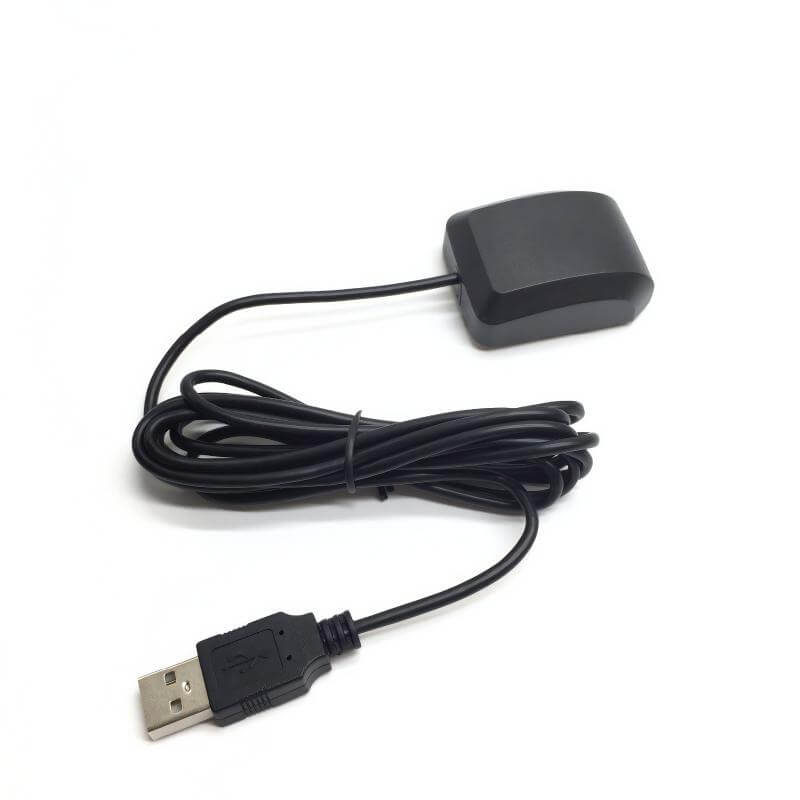

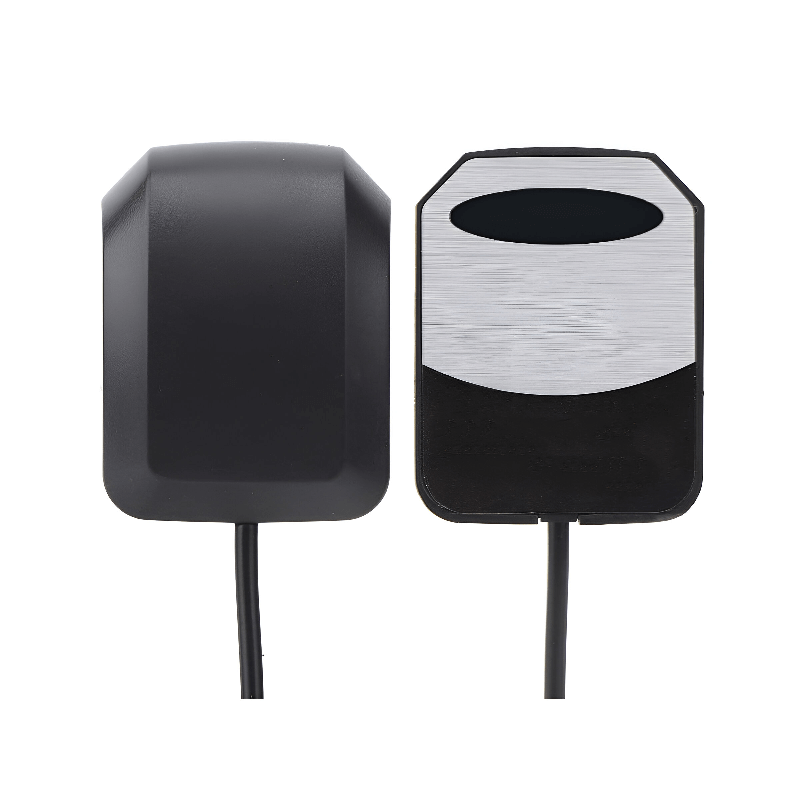

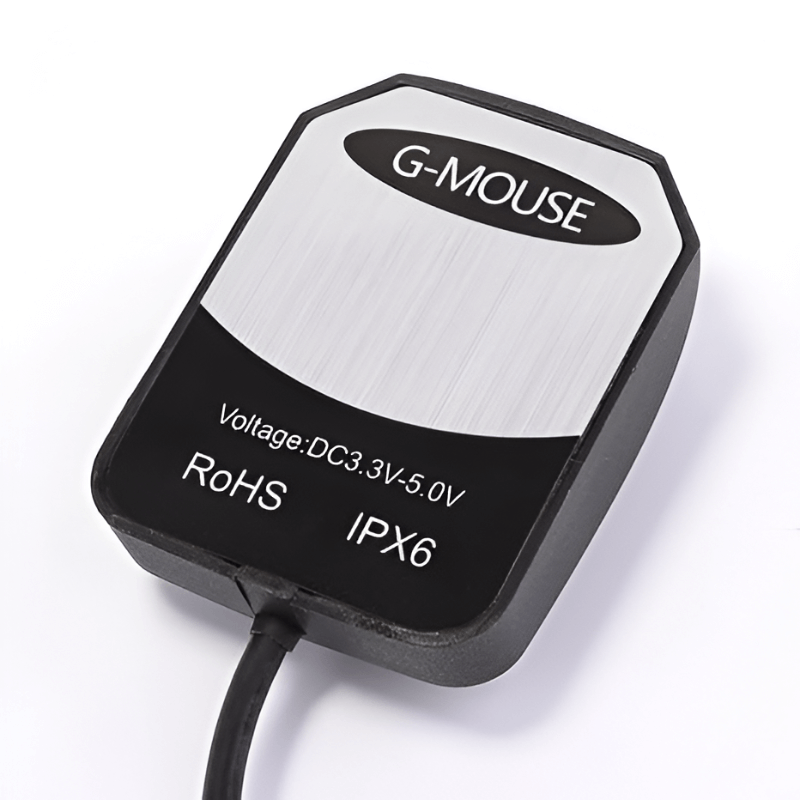

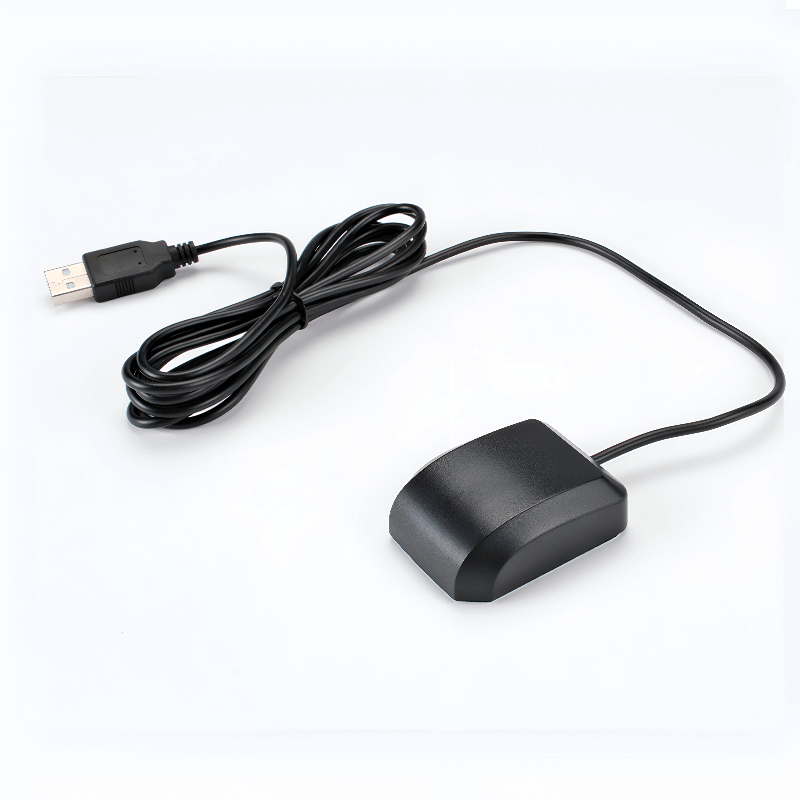

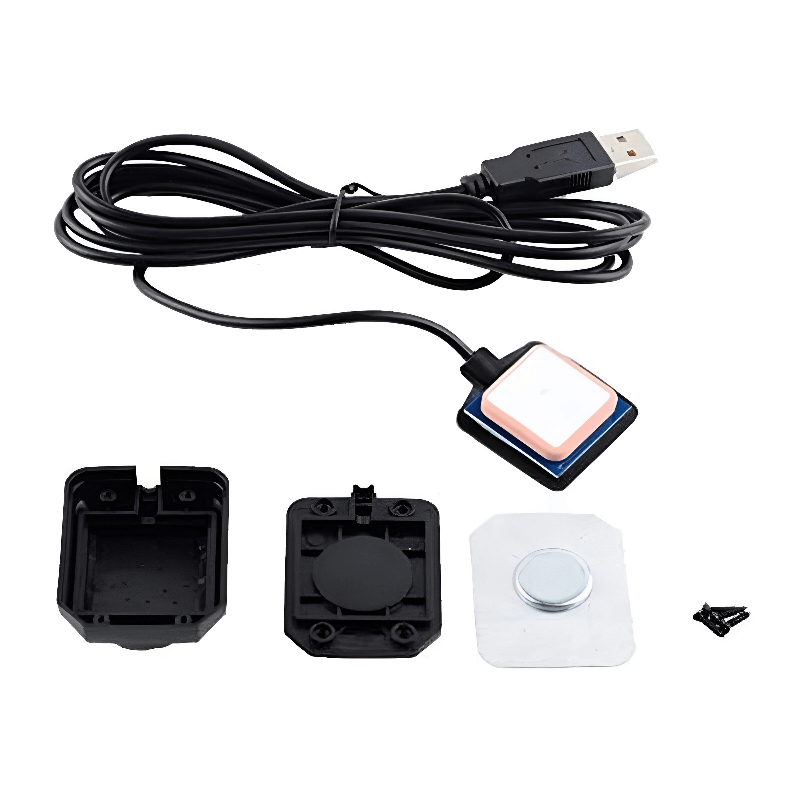

🅿️ Product Images:
